Zinc-Bromine Batteries Set To Find Usage In Energy Storage

Zinc-Bromine Batteries Set To Find Usage In Energy Storage

The flowless zinc-bromine battery (FLZBB) is a promising alternative to flammable lithium-ion batteries due to its use of non-flammable electrolytes. However, it suffers from self-discharge due to the crossover of active materials, generated at the positive graphite felt (GF) electrode, to the negative electrode, significantly affecting performance. Now, researchers have developed a novel nitrogen-doped mesoporous carbon-coated GF electrode that effectively suppresses self-discharge. This breakthrough can lead to practical applications of FLZBB in energy storage systems.

A FLZBB consists of a positive electrode, a negative electrode, an electrolyte, and a separator to keep the electrodes apart. Unlike conventional zinc-bromine batteries, the electrolyte in FLZBB does not need to be pumped and is instead held in a gel-like container. Graphite felt (GF) is widely used as an electrode in many redox batteries due to its stability in acidic electrolytes. However, in FLZBBs, bromine and polybromide ions are formed within the GF-positive electrode during charging. These active materials can escape and diffuse uncontrollably to the negative electrode, causing self-discharge, which severely affects performance and lifespan. Many studies have explored approaches to suppress this crossover phenomenon, however, self-discharge remains a major issue for FLZBBs.

To address this issue, a team of researchers led by Professor Chanho Pak and including integrated M.S. and Ph.D. student Youngin Cho (first author) from the Graduate School of Energy Convergence, Institute of Integrated Technology at Gwangju Institute of Science and Technology, Korea, developed a novel nitrogen-doped mesoporous carbon-coated thick GF (NMC/GF) electrode. Their study was made available online recently in the Chemical Engineering Journal.

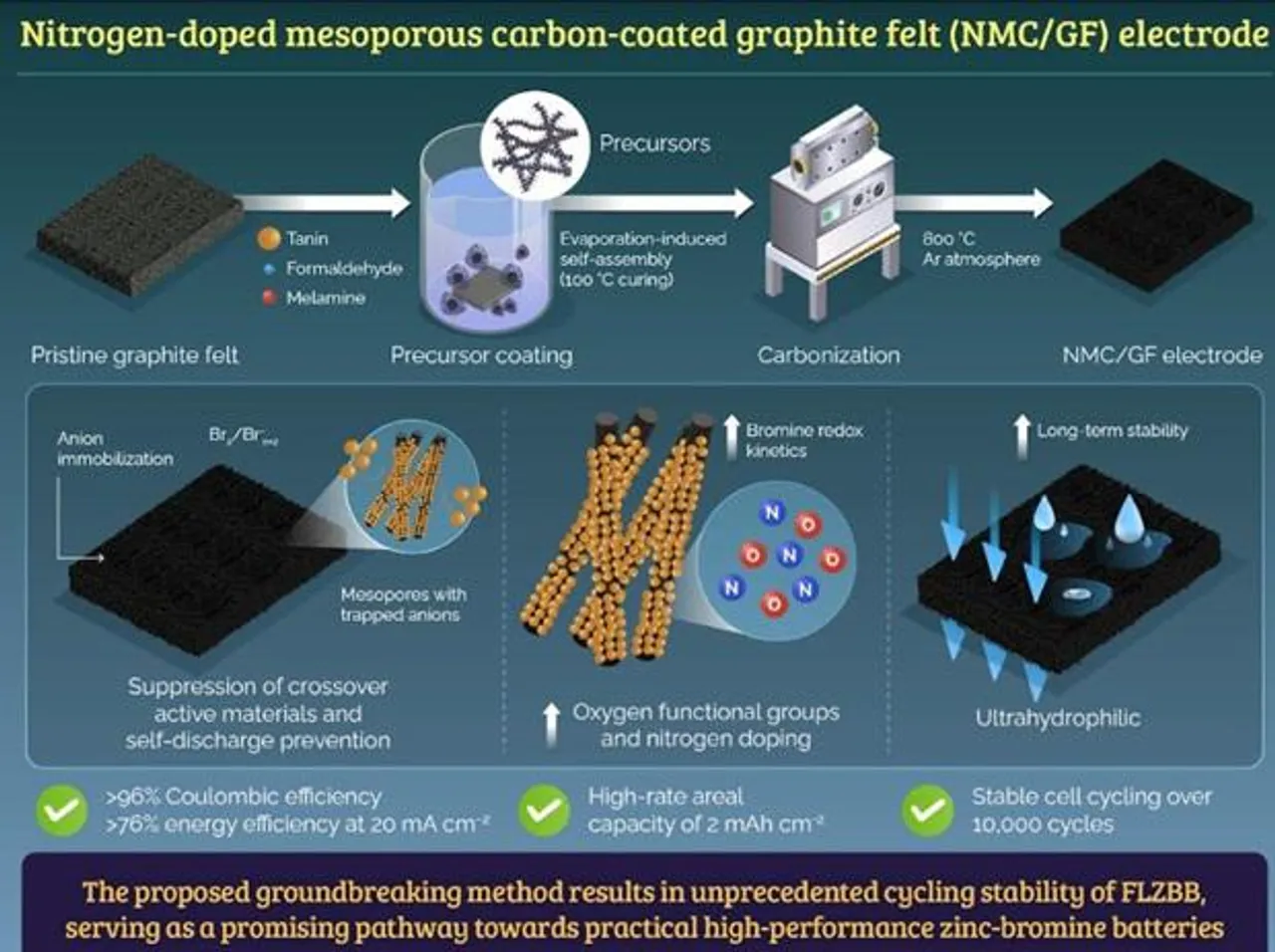

The researchers fabricated the NMC/GF electrodes using a simple, cost-effective evaporation-induced self-assembly method. In this method, a pristine GF felt was coated with precursor materials and mixed in a solvent, followed by drying and curing. When applied to an FLZBB, the new electrodes effectively suppressed the crossover of the active materials and prevented self-discharge. This success was attributed to the mesopores present on the GF fibers in the NMC/GF electrodes.

Prof. Pak explains, “The NMC coating on the GF electrodes introduced mesopores with strategically embedded nitrogen sites, which served as a stronghold, capturing the bromine and bromine complexes in the positive electrode, suppressing bromine crossover and self-discharge phenomena. Moreover, this coating made the originally hydrophobic pristine GF electrodes ultrahydrophilic, improving interfacial contact with the electrolyte in the aqueous electrolyte and enhancing electrochemical performance. Additionally, it allowed the incorporation of abundant oxygen and nitrogen species, which improved bromine reaction speeds, further boosting performance.”

The FLZBB with NMC/GF electrodes demonstrated excellent Coulombic and energy efficiencies of 96% and 76%, respectively, at a current density of 20 mA cm-2, as well as a high-rate areal capacity of 2 mAh cm-2. Furthermore, the battery exhibited unprecedented durability, with charge/discharge cycling stability extended to over 10,000 cycles. Also, the thick GF electrode used can potentially reduce the overall price of the battery.

Highlighting the significance of this achievement, Prof. Pak says, “The development of FLZBB positive electrode, which maintains long-term operation over 10,000 cycles with high efficiencies, will accelerate the development of stable ESSs and eco-friendly energy conversion in the long term. Moreover, NMC/GF positive electrode can also be used for other aqueous batteries.”

This groundbreaking technology can enable practical applications of FLZBB, leading to safer ESSs and more stable renewable energy systems.
